Camera Mount

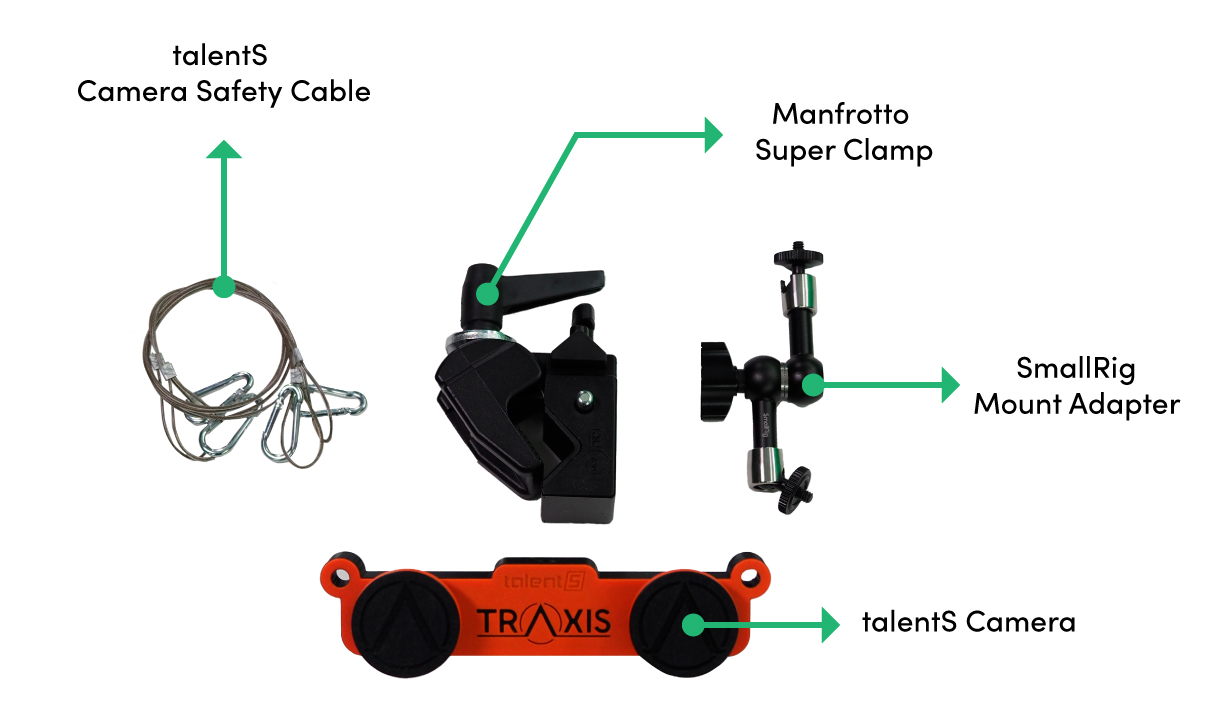

Prepare the following parts as shown in the image above:
- talentS Camera
- SmallRig Mount Adapter
- Manfrotto Super Clamp
- talentS Camera Safety Cable

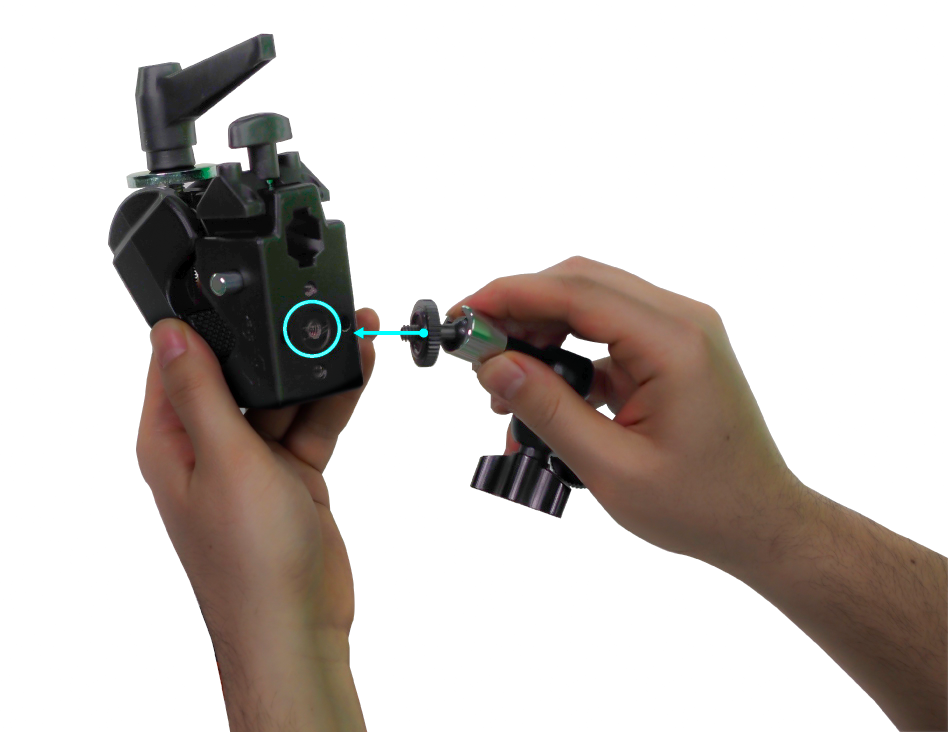

Screw down the SmallRig to the Manfrotto Super Clamp Adaptor, as shown in the image above

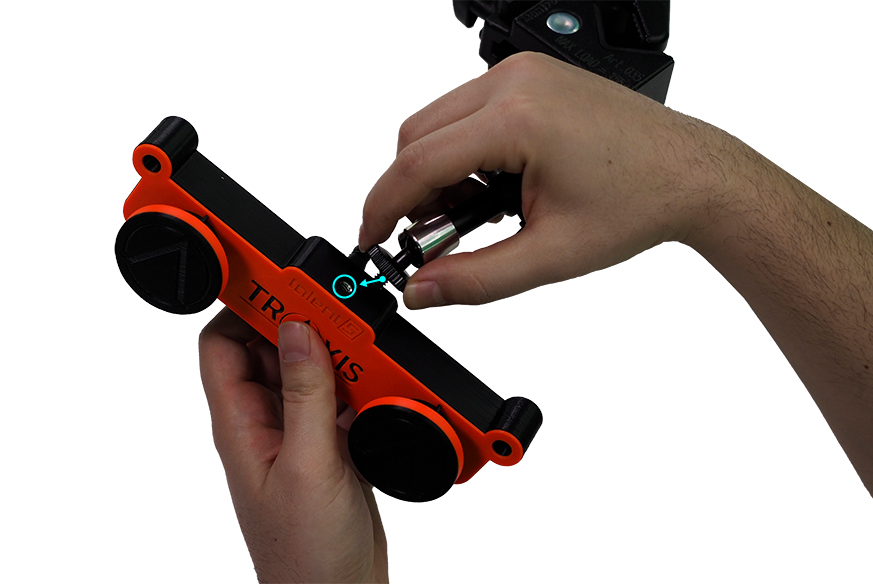

Screw down the SmallRig to the talentS camera, as shown in the image above

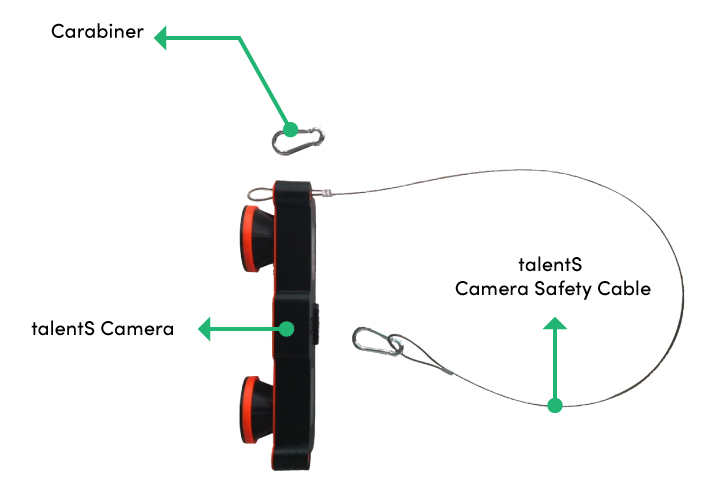

- Take one of the carabiners out.
- Insert the safety cable into position, as shown in the image above.

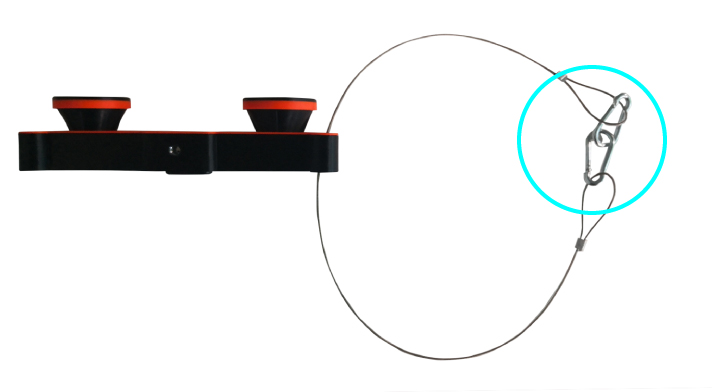

Fasten up the carabiners, as shown in the image above.

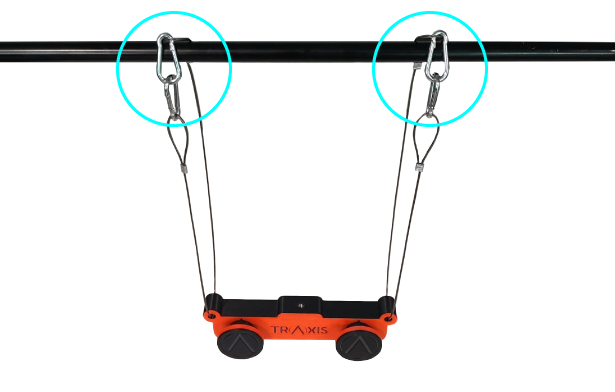

The example image shows how fastened carabiners and security cables work.
Security cables can be telescoped to reduce the length.
